Furnace Gas Valve Repair: Your Step-by-Step Troubleshooting Guide

Why Understanding Furnace Gas Valve Issues Can Keep Your Home Safe and Warm

Furnace gas valve repair is a critical heating system issue. This small component controls the gas flow to your burners, making it essential for both comfort and safety. When it malfunctions, you could be left without heat or face serious safety risks.

Quick Answer for Furnace Gas Valve Repair:

1. Safety First: Turn off the gas supply and electrical power before any work.
2. Check Basics: Verify thermostat settings, power, and gas supply are correct.
3. Test the Valve: Use a multimeter to check for 24-volt power to the gas valve.
4. Common Signs: No heat, weak flames, gas odors, or unusual clicking sounds.
5. When to Call a Pro: Strong gas smells, lack of experience, or complex electrical issues.

Your furnace's gas valve acts as a gatekeeper for the combustion chamber. When the thermostat calls for heat, the valve opens to allow a precise amount of gas for safe burning. Gas valve problems are among the most common furnace malfunctions, but many can be diagnosed with simple troubleshooting, though repairs often require professional expertise.

Warning signs of a faulty gas valve include the furnace not igniting, insufficient heat, frequent cycling, or clicking sounds without ignition. The most concerning sign is a gas odor (like rotten eggs), which requires immediate professional attention.

Understanding when to troubleshoot versus when to call a technician can save you time and prevent dangerous situations. While some diagnostics are homeowner-friendly, actual gas valve repair requires specialized tools and safety protocols.

Is Your Furnace Gas Valve Faulty? Key Symptoms and Safety Hazards

When a gas valve is the culprit behind a furnace issue, it's not just an inconvenience—it can be dangerous. Knowing the signs of a faulty furnace gas valve is the first step toward keeping your home warm and safe.

An obvious indicator is your furnace not turning on when the thermostat calls for heat. You might hear the inducer motor or ignitor clicking, but the burners never ignite. Alternatively, your furnace might run but produce insufficient heat, cycling constantly without reaching the set temperature. This often points to a valve not allowing enough gas to flow.

Unusual noises are another clue. A hissing sound near the furnace is a critical sign of a gas leak and demands immediate action. Other sounds, like rattling or a clicking without ignition, can also signal a problem. If you hear the valve click but no flame appears, it's trying to open but failing.

The most serious symptom is a gas odor, often like rotten eggs. This indicates a gas leak, which poses a severe fire or explosion risk. Gas leaks can also lead to carbon monoxide poisoning, a colorless, odorless gas that is incredibly dangerous. If you smell gas, leave your home immediately, then call your gas company and emergency services from a safe distance. Never attempt to diagnose it yourself.

Common Signs of a Bad Gas Valve

Look for these specific clues that point to a faulty gas valve:

• Weak or Yellow Flame: A healthy flame is strong and blue. A weak or yellow flame indicates incomplete combustion, which is inefficient and can produce carbon monoxide.
• Burners Won't Light: The ignitor may glow or spark, but the gas valve fails to open and release fuel to the burners.
• Pilot Light Issues: On older furnaces, a pilot light that frequently goes out or is hard to keep lit can be a sign of a failing valve.
• Furnace Shuts Down Unexpectedly: "Short cycling," where the furnace runs for a short time before shutting down, can be triggered by safety mechanisms detecting improper gas flow from a faulty valve. This is when professional furnace gas valve repair is often needed.

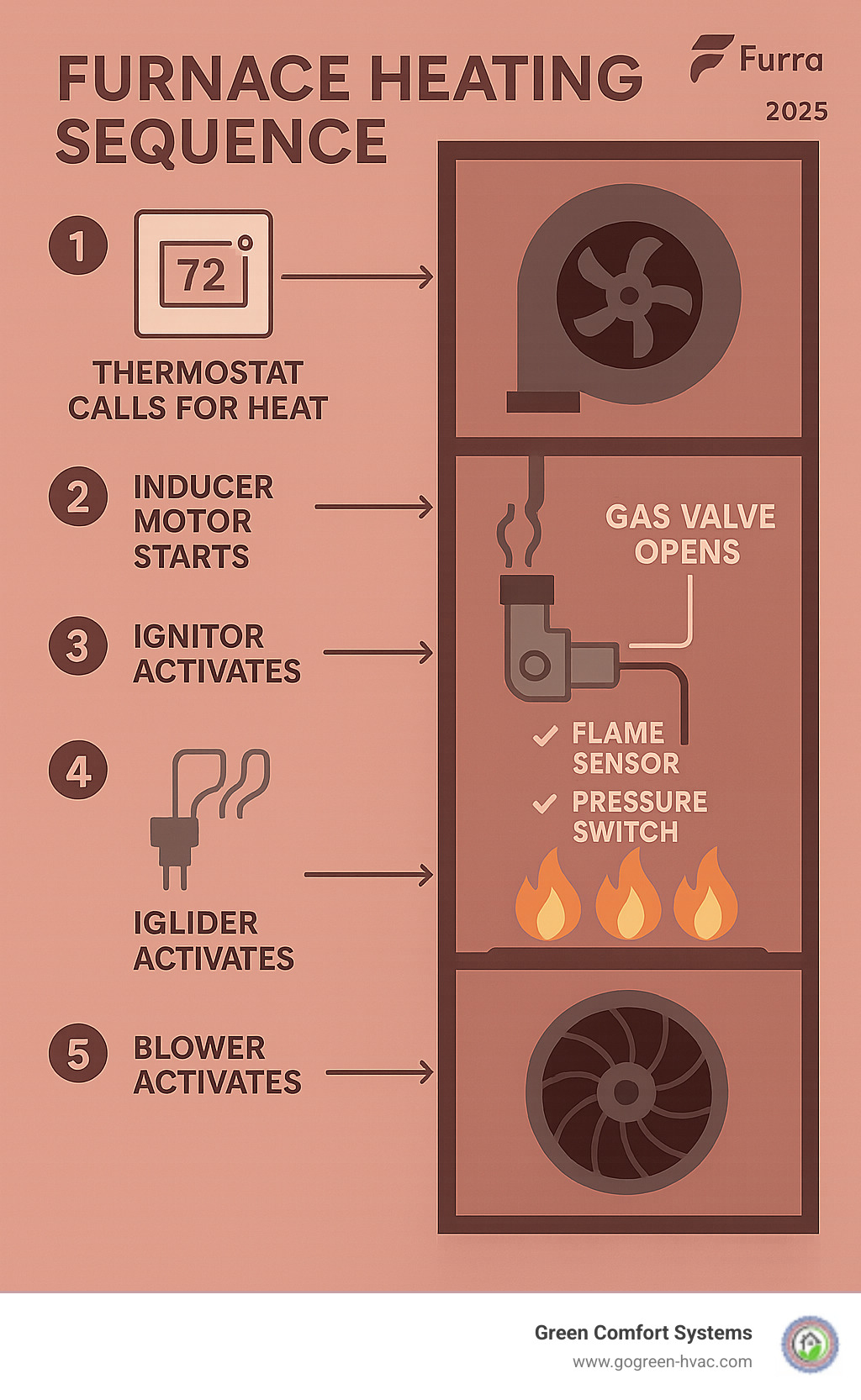

Understanding the Furnace Sequence of Operations

To understand how a gas valve fails, it helps to know how a healthy furnace works. It's a precise sequence:

1. Thermostat Call: The thermostat sends a 24-volt signal to the furnace control board.
2. Inducer Motor Starts: This motor pulls in combustion air and pushes out exhaust gases.
3. Pressure Switch Closes: This switch confirms proper airflow, signaling it's safe to proceed.
4. Ignitor Activates: The control board powers the ignitor (hot surface or spark).
5. Gas Valve Opens: After safety checks pass, the control board sends 24 volts to the gas valve, causing its solenoid to open and release gas.
6. Burners Ignite: Gas flows past the ignitor and ignites the main burners.
7. Flame Sensor Confirms: This sensor detects the flame and signals the control board to keep the gas flowing. If no flame is detected, it shuts the valve off.
8. Blower Motor Activates: Once the heat exchanger is warm, the main blower distributes warm air.

A failure at step 5 or later often points to a faulty gas valve. For more details on furnace components, you can explore resources on Furnace System Improvements.

Diagnosing the Problem: A Pre-Repair Checklist

Before attempting any furnace gas valve repair, a few simple checks can save you time and money. This pre-repair checklist covers basic troubleshooting every homeowner can safely perform.

Initial Checks Before You Begin

Start with the basics, as the solution is often simple:

• Check Thermostat Settings: Ensure it's set to "HEAT" and the temperature is higher than the current room temperature. Check the batteries if it has them.
• Verify Power to the Furnace: Look for the light-switch-style power switch on or near your unit and make sure it's on.
• Check the Circuit Breaker: Find the breaker for your furnace in the electrical panel. If it's tripped, flip it completely OFF, then back to ON.
• Ensure Furnace Door is Secure: Most furnaces have a safety switch that prevents operation if the access panel isn't closed properly.
• Inspect the Air Filter: A clogged filter can cause the furnace to overheat and shut down, mimicking gas valve symptoms. Replace it if it's dirty.
• Confirm Main Gas Supply is On: Check the shutoff valve near your furnace and the main valve at your gas meter. The handles should be parallel to the pipe. If you suspect the main supply is off, contact your gas utility.

How to Test the Gas Valve for Power

If the basic checks don't solve the problem and you're comfortable with electrical testing, you can determine if the gas valve is receiving power. You will need a multimeter set to read AC voltage (around 200 VAC).

With the thermostat calling for heat, wait for the heating cycle to begin (you should hear the inducer motor start). Locate the two low-voltage wires connected to the gas valve's solenoid coils. Carefully touch your multimeter probes to these two terminals. If you read approximately 24 volts AC, the control board is sending power correctly.

If you get 24 volts but the valve doesn't make a "click" sound and no gas flows, the valve itself is likely faulty. The internal solenoid coils or mechanism has probably failed. This no-click diagnosis is a strong indicator that the valve needs replacement.

If you don't get a 24-volt reading, the problem is likely upstream with the control board, pressure switch, or wiring. If you're not comfortable with electrical testing, the team at Green Comfort Systems provides professional Furnace Repair Essex MD services and can handle these diagnostics safely.

A Step-by-Step Guide to Furnace Gas Valve Repair and Replacement

If you've confirmed the gas valve is faulty, you might consider a DIY replacement. We must emphasize that furnace gas valve repair is a task for advanced users with proper training due to the dangers of working with gas. For most homeowners, we strongly recommend calling a certified HVAC professional.

Key Safety Precautions for Furnace Gas Valve Repair

Safety is non-negotiable. Before starting:

• Shut Off Gas Supply: Turn the manual gas shutoff valve near your furnace to the "OFF" position (handle perpendicular to the pipe).
• Turn Off Electrical Power: Switch off the furnace breaker at your electrical panel.
• Ensure Proper Ventilation: Open windows and doors in the area to dissipate any gas fumes.
• Wear Safety Gear: Use safety goggles, gloves, and long sleeves.
• Have a Fire Extinguisher Nearby: Be prepared for emergencies.

Attempting this repair without proper knowledge can lead to serious injury or property damage and may be illegal in your area.

Tools and Parts You Will Need

Ensure you have the right tools:

• Adjustable and pipe wrenches
• Screwdrivers (Philips and flathead)
• Multimeter
• Gas-rated pipe thread sealant (yellow Teflon tape or specific pipe dope). Do NOT use standard plumbing sealant.
• Replacement gas valve: It must be an exact match for your furnace's make, model, and fuel type (natural gas or propane).

Advanced users may also need a manometer. Understanding Using a manometer for pressure checks is crucial for verifying proper gas pressure after installation.

Removing the Old Valve and Installing the New One

1. Label Wires: Before disconnecting, take photos and label the electrical wires connected to the old valve.
2. Disconnect Gas Lines: Use pipe wrenches to carefully disconnect the gas pipes from the inlet and outlet of the old valve.
3. Disconnect Wires & Remove Valve: Remove the electrical wires and unmount the old valve.
4. Apply Pipe Sealant: Apply gas-rated sealant to the male threads of the gas pipes, avoiding the first thread.
5. Secure New Valve: Position the new valve and connect the gas pipes. Tighten firmly but do not overtighten.
6. Reconnect Wires: Reconnect the electrical wires to the correct terminals on the new valve.

For professional help, consider us for Furnace Installation Towson MD.

Post-Installation: The Gas Leak Test

This step is absolutely critical.

1. Create a Soapy Water Solution: Mix dish soap and water in a spray bottle.
2. Turn on Gas: Slowly turn the gas supply back on.
3. Check for Bubbles: Spray the solution on all gas connections you worked on. If you see bubbles, you have a leak.
4. Tighten and Retest: If a leak is found, turn off the gas, tighten the fitting, and repeat the test until no bubbles appear. If you cannot stop a leak, shut off the gas and call a professional immediately.

For guaranteed safe installations, we offer services like Furnace Installation Glen Burnie MD.

When to Call a Professional HVAC Technician

While we've covered troubleshooting and replacement steps, we can't stress this enough: for most homeowners, furnace gas valve repair is a job for experts. This is about knowing your limits and prioritizing safety.

Deciding Between DIY Furnace Gas Valve Repair and Professional Service

The stakes are incredibly high when working with your furnace's gas valve. If you lack experience with gas lines and electrical work, the risk of a dangerous error is significant. It's not just about getting the heat on; it's about doing it safely.

Call a professional if you encounter:

• A Strong Gas Odor: If you smell rotten eggs, leave your home immediately and call for emergency help from a safe location. This is never a DIY situation.
• Complex Electrical Issues: If tests show no 24V power at the valve, the problem could be a faulty control board or other components requiring advanced diagnostics.
• Lack of Proper Tools: Specialized tools like a manometer are needed to check gas pressure after installation. Incorrect pressure is a safety hazard.

Furthermore, many local codes make it illegal for unlicensed individuals to work on gas appliances. A DIY repair could void your home insurance and your furnace's warranty. For peace of mind, always call a professional. We're here to help with Furnace Repair Severna Park MD and surrounding areas.

The Risks of Improper Installation

The consequences of a botched repair can be severe:

• Gas Leaks: Imperfectly sealed connections can leak gas, creating a risk of fire or explosion.
• Carbon Monoxide Exposure: An improperly installed valve can lead to incomplete combustion, producing deadly, odorless carbon monoxide (CO) gas.
• Damage to the Furnace: You could harm other components, leading to more expensive repairs.
• Using the Wrong Type of Valve: Gas valves are not interchangeable. Using a valve with the wrong pressure settings or for the wrong fuel type (propane vs. natural gas) is extremely dangerous.

Our certified technicians are trained to handle these complexities safely. We offer expert Furnace Installation Catonsville MD and ensure all work meets the highest safety standards.

Frequently Asked Questions about Furnace Gas Valves

We hear these questions often. Understanding your gas valve can help you make smart decisions about your heating system.

Can a furnace gas valve be repaired, or must it be replaced?

In almost all cases, a faulty gas valve must be replaced. Furnace gas valve repair is not feasible because the internal components (solenoids, diaphragms) are sealed within the unit for safety. Manufacturers design them as self-contained parts and do not provide repair kits.

Solenoid failure is a common issue where the electrical coil that opens the valve burns out. When this happens, the entire valve must be replaced. From a cost and safety perspective, replacement is the only recommended solution.

What is the typical lifespan of a furnace gas valve?

Most gas valves last 10-15 years. Their lifespan is rated in cycles (around 100,000), so how often your furnace runs is a major factor. A system in a poorly insulated home will cycle more, wearing out the valve faster.

Regular maintenance is key. Annual tune-ups that include checking gas pressures and cleaning burners reduce stress on the valve, helping it last longer. Signs of aging include intermittent heating or a clicking sound without ignition, which may indicate it's time for a replacement.

What are the different types of furnace gas valves?

Not all gas valves are the same. The type in your furnace depends on its age and design.

• Standard Valves: Found in older systems, often with standing pilot lights.
• Combination Valves: The modern standard, integrating the manual shutoff, pressure regulator, and controls into one compact unit.
• Step-Opening Valves: Used in high-efficiency furnaces, these open gradually for a smoother, quieter ignition.
• Smart Valves: The newest type, offering advanced diagnostics and Wi-Fi connectivity for precise control.

Crucially, natural gas and propane valves are not interchangeable. They are calibrated for different pressures and fuel properties. Using the wrong type is a serious safety hazard.
