Furnace Pilot Light: Your Guide to Troubleshooting and Re-lighting
What You Need to Know About Your Furnace Pilot Light
When your furnace pilot light goes out, your home gets cold fast. This small flame is the ignition source for older furnaces, and knowing how to troubleshoot it can save you time and money.
Quick troubleshooting tips:
- Check for the flame - Look for a small blue flame behind the furnace's access panel.
- Smell for gas - If you smell gas, leave your home immediately and call a professional.
- Try relighting - Follow the proper safety steps to relight the pilot.
- Call for help - If the pilot won't stay lit, contact an HVAC technician.
Most furnaces built before 2010 have a standing pilot light—a continuous flame that ignites the main burners. Common reasons for it going out include a faulty thermocouple, a clogged pilot orifice, or strong drafts.
Many of these issues can be fixed with simple troubleshooting, but it's crucial to know when to call for professional help.
Understanding Your Pilot Light Assembly
Before you can troubleshoot your heating issues, it helps to understand the components that keep your home cozy.
What is a Furnace Pilot Light and What Does It Do?
Your furnace pilot light is a small, continuously burning flame that serves as the ignition source for your furnace's main burners. When your thermostat calls for heat, this constant flame ignites the burners to warm your home. This older furnace technology is common in furnaces over 15 years old, especially those made before 2010. While newer systems are more energy-efficient, many homes still rely on standing pilot systems. For more on how heating systems work, the Department of Energy provides great information on how furnaces work.

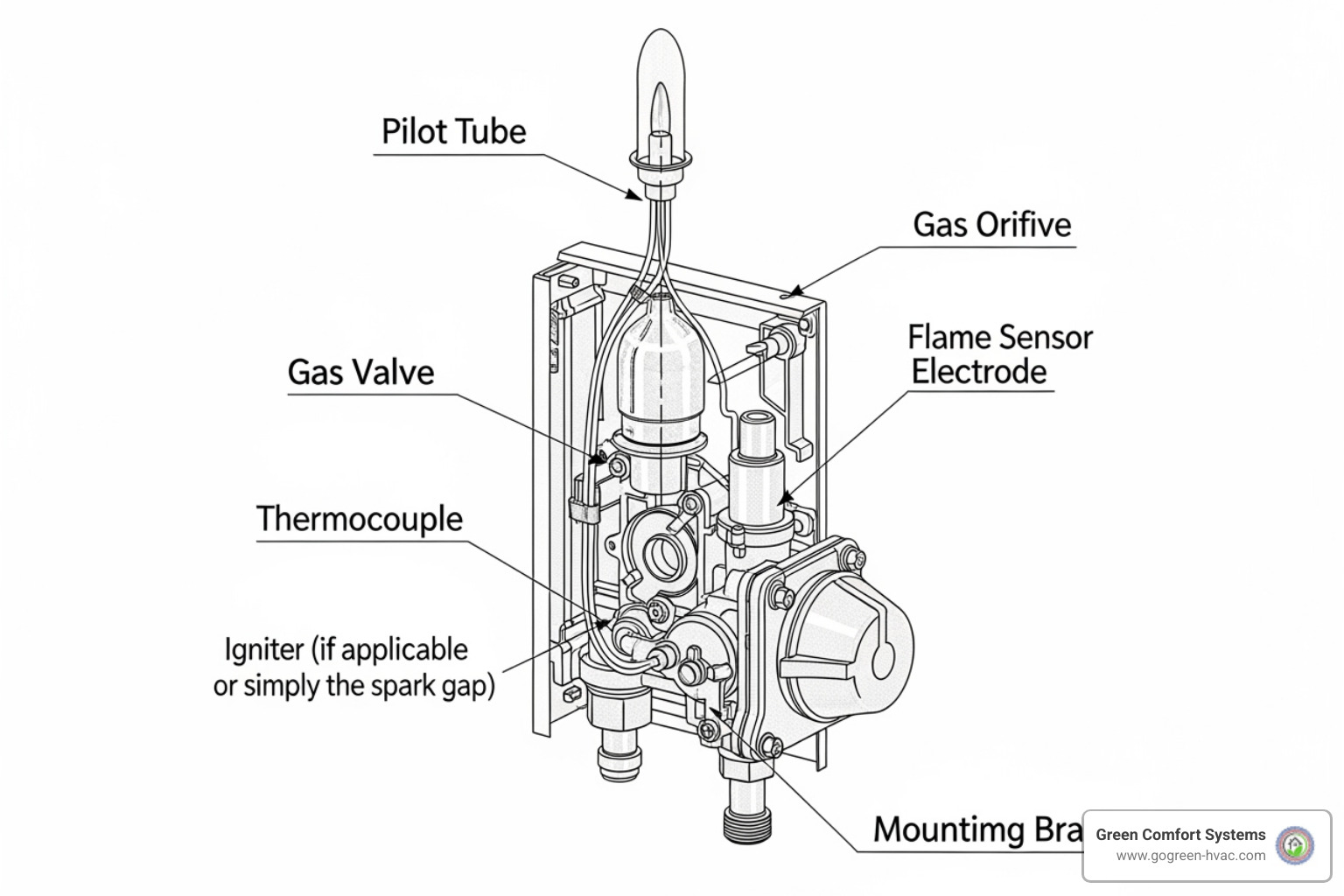

Common Components of the Pilot Assembly
Your furnace pilot light is part of a small team of components. Understanding them will help you troubleshoot with confidence.
- Gas Valve: This regulates the flow of natural gas. You'll recognize it by the control knob with ON, OFF, and PILOT settings.
- Pilot Tube and Orifice: The pilot tube delivers gas to the pilot light through a tiny orifice. If this opening gets clogged with debris, your pilot flame will be weak or go out.
- Thermocouple: This is a critical safety sensor. It sits in the pilot flame and generates a tiny electrical current that tells the gas valve to stay open. If the pilot light goes out, the thermocouple cools, the current stops, and the gas valve shuts off, preventing a dangerous gas leak.
- Reset Button: Often part of the control knob, this button manually allows gas to flow to the pilot during the relighting process.
How to Safely Locate the Pilot Light on Your Furnace
To find your furnace pilot light, look at the bottom of your furnace. It's usually behind an access panel or visible through a small window. Your owner's manual is the best guide, but if you don't have it, look for the gas valve with its ON, OFF, and PILOT labels. The pilot assembly will be nearby. If you're ever unsure or uncomfortable, call a professional. Your safety is what matters most.
Why Your Furnace Pilot Light Goes Out: Common Causes
When your furnace pilot light goes out, it's usually for a straightforward reason. Understanding these common causes can help you restore your heat faster.
The Role of a Faulty Thermocouple
The thermocouple is a safety sensor that sits in the pilot flame. Its job is to detect heat and signal the gas valve to stay open. When it's not working correctly, the gas valve shuts off as a safety measure, and the pilot light goes out.
Common thermocouple problems include:
- A dirty thermocouple covered in soot can't sense the flame's heat properly.
- A worn-out sensor may no longer produce enough electrical current to keep the valve open.
- A misaligned thermocouple that isn't sitting directly in the flame won't get hot enough to work.
If your pilot light repeatedly goes out after being relit, the thermocouple is a likely culprit. The Department of Energy confirms that when pilot lights are erratic, you might have a problem with the thermocouple.
Clogged Pilot Orifice or Gas Supply Issues
Your furnace pilot light needs a steady, clean supply of natural gas. If that supply is interrupted, the flame will suffer.
- Dirt and soot buildup can clog the pilot orifice, leading to a restricted gas flow and a weak flame that is easily extinguished.
- A yellow flame, instead of a healthy blue one, indicates incomplete combustion and can produce dangerous carbon monoxide.
- Low gas pressure from your utility or a gas regulator malfunction can also starve the pilot light of fuel.
If other gas appliances in your home are also having issues, the problem may be with your main gas service.
Drafts and Airflow Problems
Just like a candle, a furnace pilot light can be blown out by air currents.
- Strong drafts from a nearby window, a loose furnace panel, or leaks in your foundation can extinguish the flame.
- A cracked heat exchanger is a serious safety hazard that can create pressure changes and put out the pilot. This requires immediate professional attention due to carbon monoxide risks.
- Improperly sealed furnace panels or an obstructed flue pipe can cause backdrafts that interfere with the pilot light.
- Poor ventilation around the furnace can also create pressure imbalances that disrupt the flame. These issues can be intermittent, making regular furnace maintenance essential for identifying them.
How to Safely Relight Your Furnace Pilot Light
Relighting your furnace pilot light is often a manageable DIY task, but safety is paramount when dealing with natural gas.
Essential Safety Precautions Before You Start
Before you begin, take these critical safety steps:
- Smell for gas around the furnace. If you detect a rotten egg odor, leave your home immediately and call your gas company from a safe location. Do not use any electronics or light sources.
- Ventilate the area by opening nearby windows.
- Turn off the power to the furnace at the switch or circuit breaker.
- Turn the gas valve to the OFF position. Wait 5-10 minutes for any residual gas to dissipate. This is a crucial step.
- Have a long lighter or long matches ready to keep your hand at a safe distance.
If you feel uncertain at any point, call a professional. Your safety is the top priority.
Step-by-Step Guide to Relighting the Flame
After following all safety precautions, you're ready to relight the furnace pilot light.
- Turn the control knob to the "PILOT" setting.
- Press and hold the reset button (this may be the knob itself) while you bring the flame from your long lighter to the pilot opening.
- Continue holding the reset button for 30-60 seconds after the pilot ignites. This gives the thermocouple time to heat up.
- Slowly release the reset button. If the flame stays lit, turn the knob to "ON."
- Restore power to the furnace at the switch or breaker.
What if the Pilot Light Won't Stay Lit?
If the pilot light goes out after you release the button, try the process one more time, holding the reset button for a full 60 seconds.
If it still won't stay lit, the issue could be a dirty thermocouple. If you feel comfortable, you can gently clean it with a wire brush. However, if the pilot continues to go out after two attempts, it's time to call for help. Persistent issues often point to a faulty part or a clog that requires professional diagnosis.
When DIY fixes don't work, our technicians at Green Comfort Systems provide reliable Professional Furnace Repair Services in the Rosedale area to get your heat back on safely.
Modern Systems and When to Call a Professional
If your furnace was built after 2010, it likely has an electronic ignition system instead of a furnace pilot light. Understanding the difference can save you troubleshooting time.

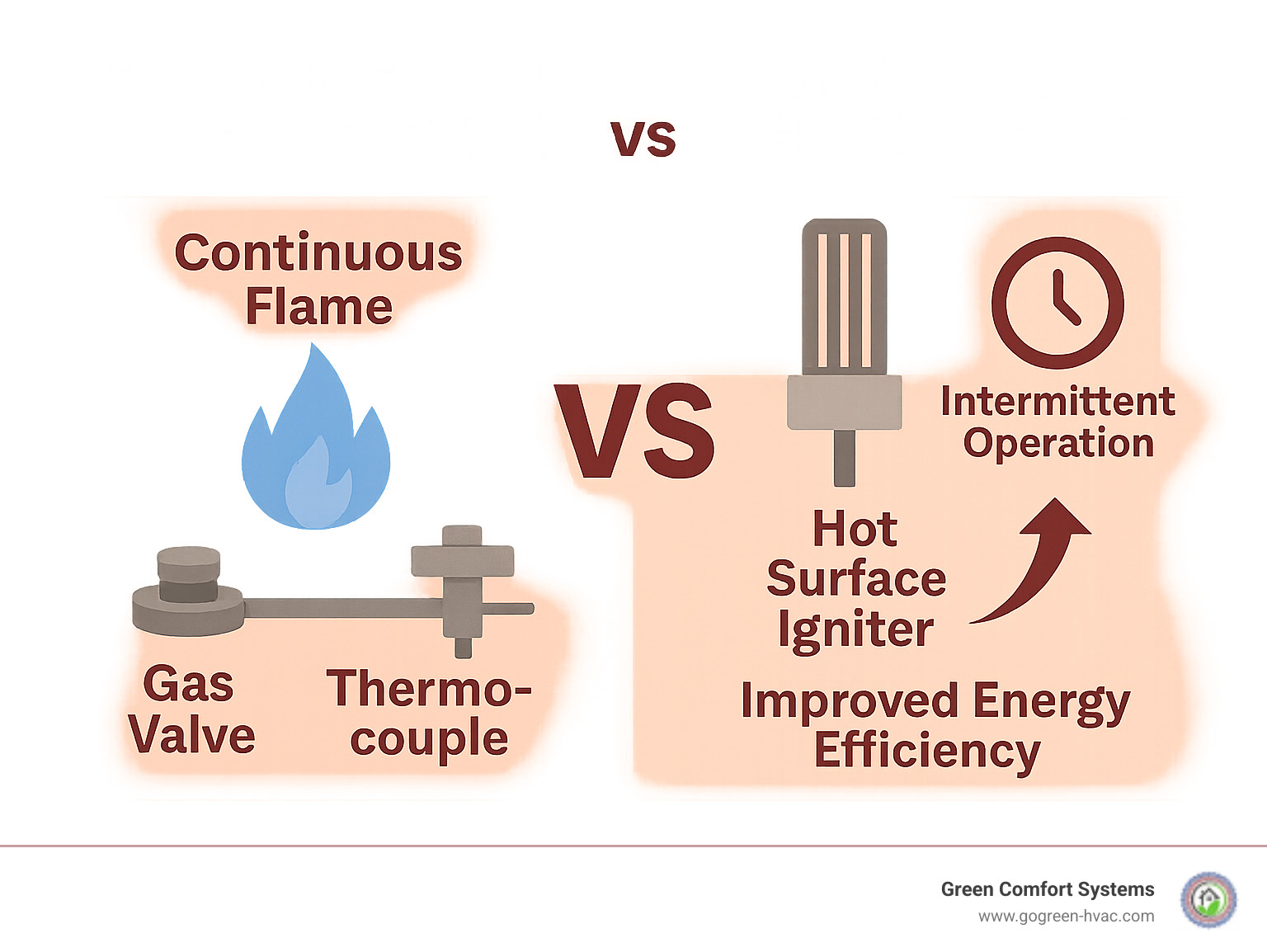

Pilot Light vs. Electronic Ignition: What's the Difference?
A standing pilot light burns gas continuously, while an electronic ignition only uses gas when heat is needed, making it far more efficient. Modern furnaces use either a hot surface igniter (which glows to light the gas) or an intermittent pilot (a flame that only lights on demand).
| Feature | Standing Pilot Light | Electronic Ignition System |
|---|---|---|
| Ignition Method | Small, continuously burning flame | Uses an electric spark or a hot surface igniter |
| Gas Consumption | Consumes a small amount of gas continuously | Consumes gas only when the furnace needs to heat |
| Energy Efficiency | Less efficient due to constant gas use | More energy-efficient, as gas is not wasted |
| Reliability | Can be blown out by drafts, susceptible to clogs | Generally more reliable, less prone to environmental factors |
| Maintenance | Requires occasional cleaning and relighting | Generally maintenance-free (for ignition system itself) |
| Safety | Thermocouple shuts off gas if flame goes out | No continuous flame, reducing risk of unignited gas leaks |
| Common Types | Standing pilot | Hot surface igniter (most common), Intermittent pilot (less common) |
Electronic ignition systems are a key reason ENERGY STAR models can achieve high efficiency ratings, saving you money on utility bills.
Signs You Need Professional HVAC Help
While some issues are DIY-friendly, these signs indicate it's time to call a professional for your safety:
- Strong gas smell: If you smell rotten eggs, leave your home immediately and call your gas company from a safe location, then call an HVAC professional.
- Pilot won't stay lit: If the pilot goes out after two relighting attempts, it likely indicates a faulty part or a clog that needs professional attention.
- Yellow, flickering flame: This indicates incomplete combustion and a potential carbon monoxide risk. A healthy flame is blue and steady.
- You're uncomfortable with the process: If you're not confident working with a gas appliance, it's always safest to call a professional.
- Unusual sounds or smells: Burning smells or strange noises can signal serious issues that require an expert diagnosis.
Our team at Green Comfort Systems provides Expert Heating Services throughout Maryland. We're ready to diagnose and fix the problem safely.
The Importance of Regular Furnace Maintenance
Most pilot light problems are preventable with regular maintenance.
Annual tune-ups are the best way to ensure reliability and efficiency. During a maintenance visit, a technician will perform component cleaning and crucial safety checks.
- Component Cleaning: Technicians clean parts like the thermocouple and pilot orifice to prevent common issues.
- Safety Checks: Maintenance includes testing for carbon monoxide leaks and ensuring all safety features are functional.
- Improved Efficiency: A clean furnace runs more efficiently, lowering your energy bills.
- Extended Lifespan: Regular maintenance can help your furnace last 15-20 years or more, delaying a costly replacement.
At Green Comfort Systems, we offer comprehensive Schedule Heating Maintenance Services to keep your system running smoothly.
Frequently Asked Questions about the Furnace Pilot Light
Here are answers to the most common questions we receive about the furnace pilot light.
What does a healthy pilot light flame look like?
A healthy pilot flame is steady and blue, although a small yellow tip is normal. A weak, flickering, or mostly yellow/orange flame indicates a problem, such as a dirty orifice or poor air/fuel mixture. A yellow flame can signal incomplete combustion and produce carbon monoxide, so it requires professional attention.
Do all modern gas furnaces have a pilot light?
No. Most furnaces manufactured since 2010 use a more energy-efficient electronic ignition system (like a hot surface igniter or intermittent pilot) instead of a standing furnace pilot light. These systems only use gas to create a flame when your home needs heat.
Is it dangerous if my pilot light goes out?
The immediate danger is low. Furnaces have a safety device called a thermocouple that automatically shuts off the gas supply if the pilot flame goes out, preventing gas leaks. However, a pilot that repeatedly goes out indicates an underlying problem (like a faulty thermocouple or a draft) that needs to be fixed to restore your heat and ensure safe operation. It's best to call the professionals at Green Comfort Systems to diagnose and resolve the issue.
Conclusion
Understanding your furnace pilot light is a valuable homeowner skill. Knowing how to identify components, troubleshoot issues, and safely relight the flame can save you from a cold home.
While DIY relighting is often possible, safety is non-negotiable. Always follow safety precautions, and if you smell gas or feel uncomfortable, call a professional immediately.
Persistent issues, such as a pilot that won't stay lit or a yellow flame, are signs of a deeper problem that requires an expert. Addressing these warnings early can prevent more costly repairs. The best way to prevent these problems is with regular maintenance. An annual tune-up keeps your system efficient, extends its lifespan, and prevents unexpected breakdowns.
Green Comfort Systems proudly serves Rosedale, MD, and surrounding areas like Severna Park, Towson, and Baltimore. We combine expert HVAC service with environmental responsibility, planting a tree for every job we complete.
A truly efficient heating system depends on both the furnace and the ductwork. If you're having furnace issues, it's a good time to evaluate your entire system. Learn more about our expert ductwork installation services to maximize your home's comfort and efficiency.
Stay warm, stay safe, and remember - we're always here when you need us most.
